Using Drawing Sets in the App
Any images displayed are representative only and may differ depending on the version being used.
If you have loaded a Drawing Set on a work package, then Site Plans view will be available on the app.
To load Drawing Sets, check out our guides Loading Drawing Sets and Adding Technical Support Documents for Passive Fire.
These can be used in two ways:

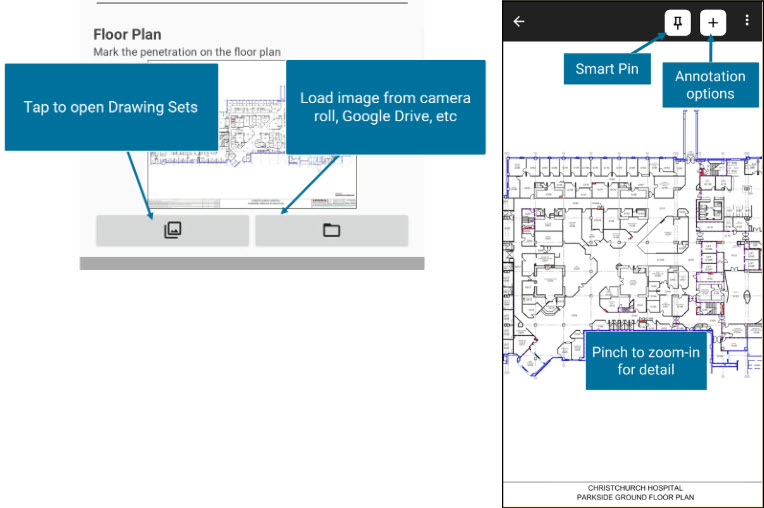

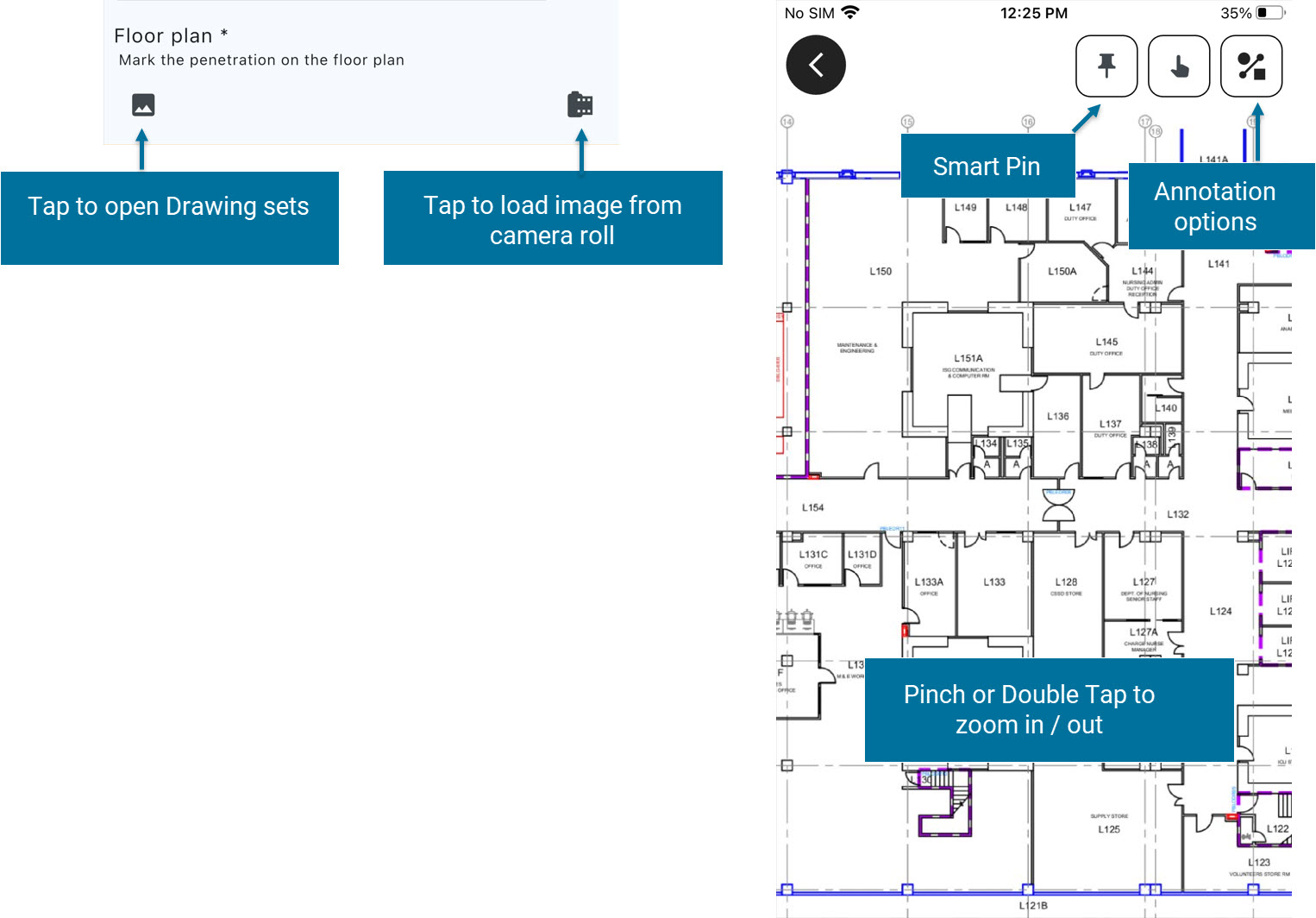

To select an image (this could either be a site plan or technical support document)
To work directly from the site plan
Selecting Images
Android:
iOS:
Working from Site Plans
You can start an inspection from the site plan and can see all work that is in progress, or planned on each floor. You can also see basic details about the work, and download (fetch) that inspection if you want.
Site Plan Overview
To access site plan, tap on the ‘Site Plan’ button on the bottom right of the Work Package in the app.
If the Work Package has more than one site plan available, tap the Floor Plan banner at the top to get a drop down list of options
To Add an Inspection you need to zoom in first. You can double tap to zoom.

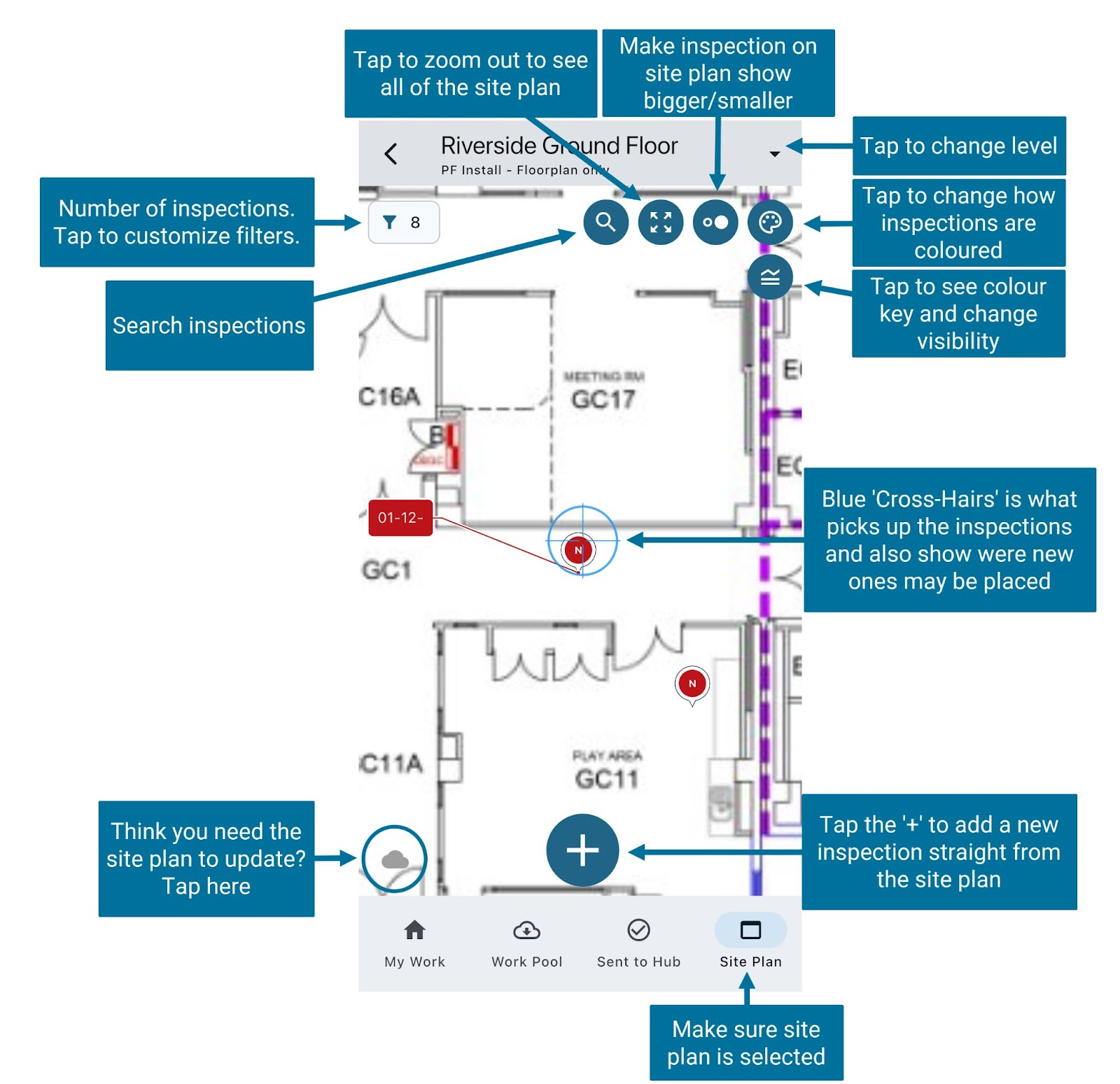

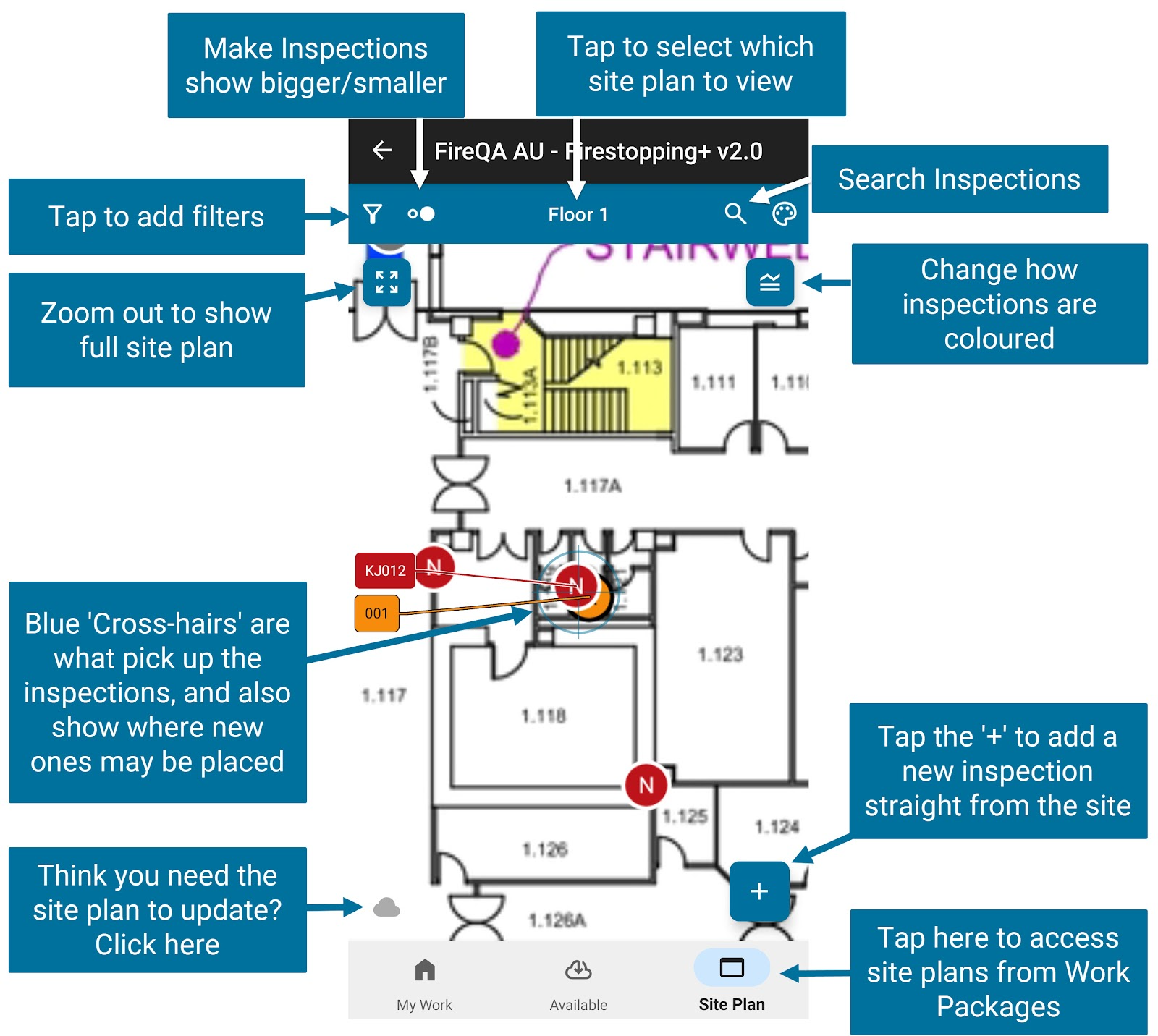

You will see the blue cross-hairs and see the Add Inspection + button. You can zoom more if you want to precisely locate the pin.
To view details on any inspection, or fetch an available one, you can tap on the marker, or on the text-balloon label.
Android
Filters

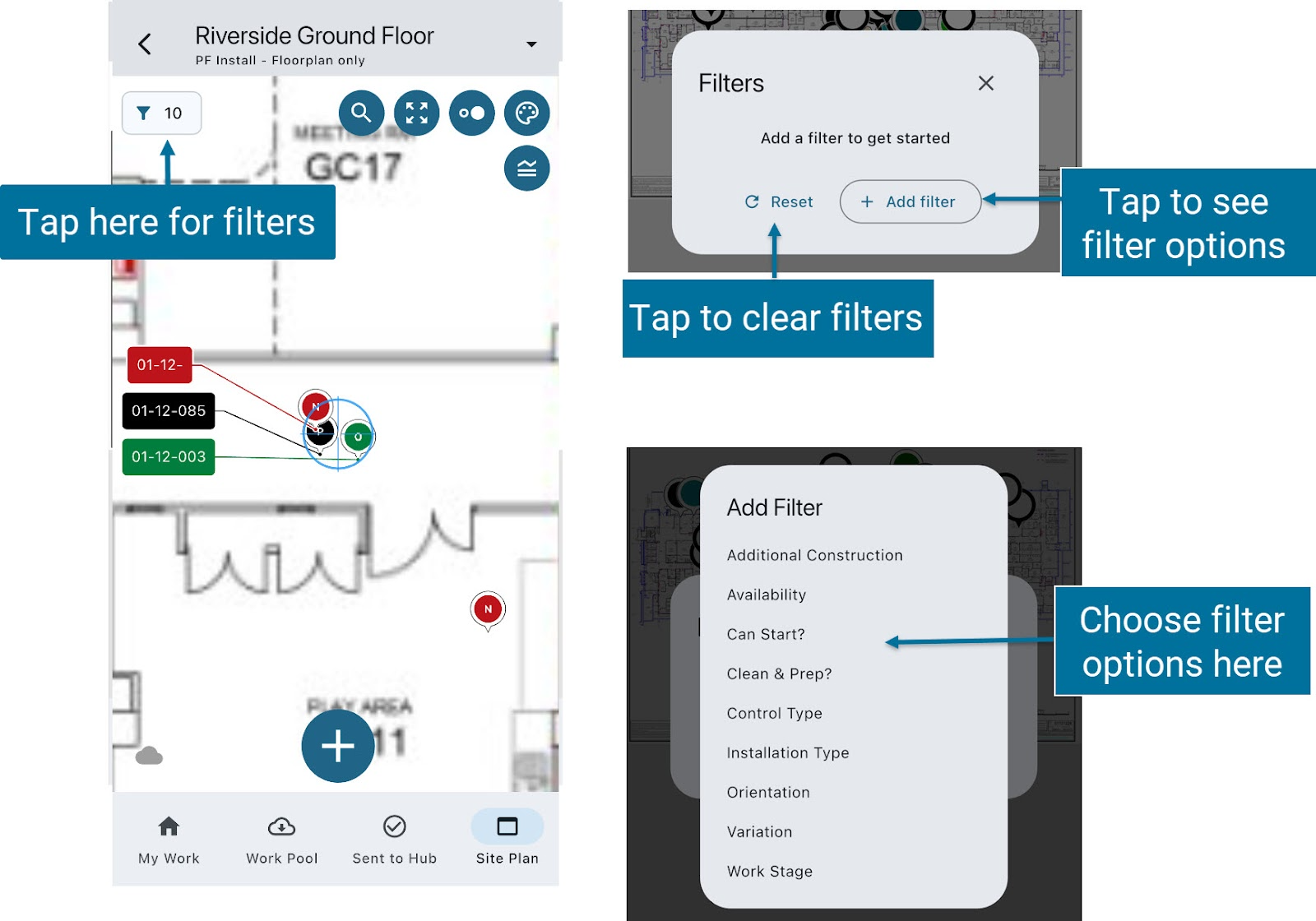

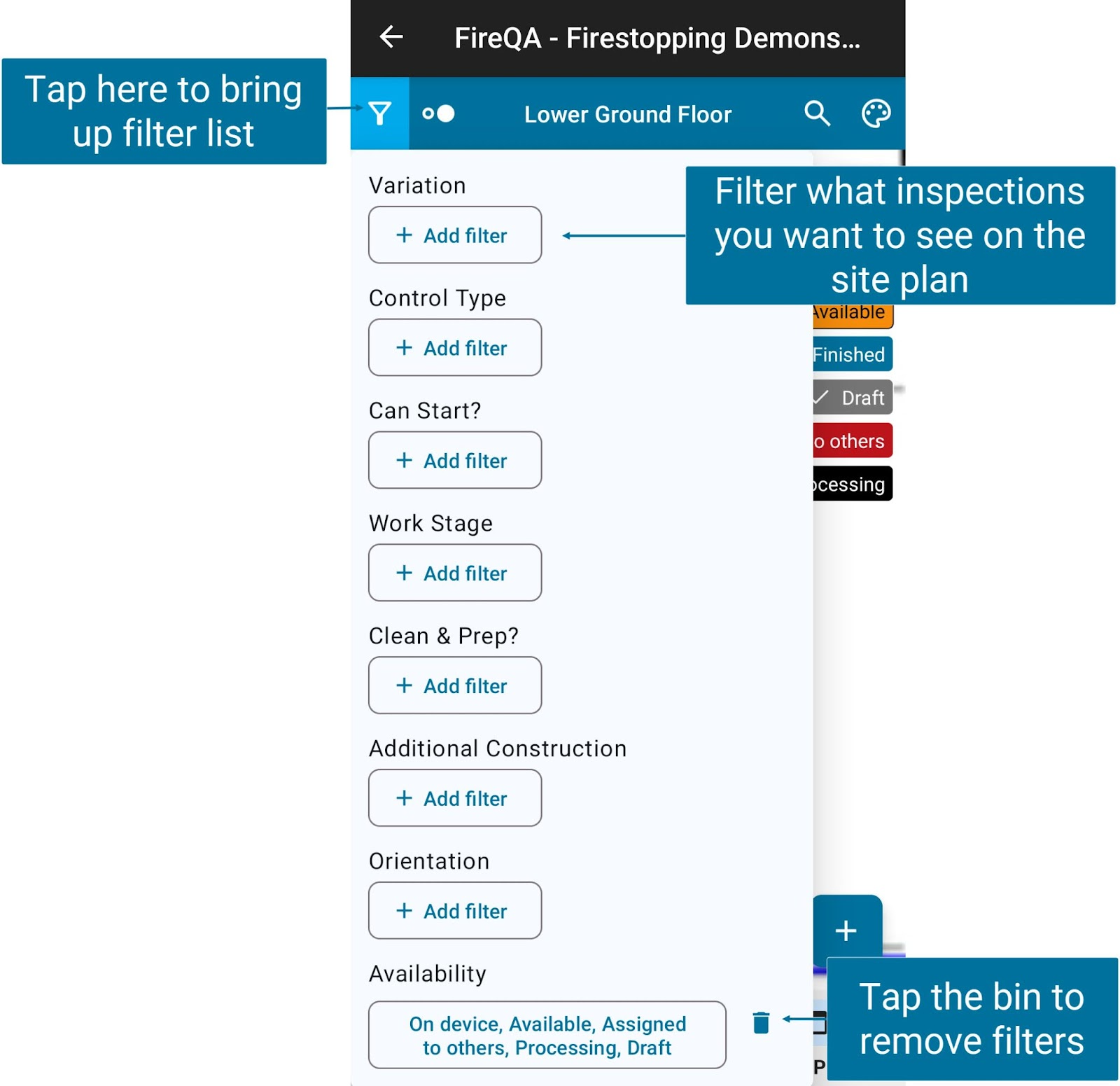

Add filters to your site plan so you only see the inspection types and state you want to see.
Colour by Field

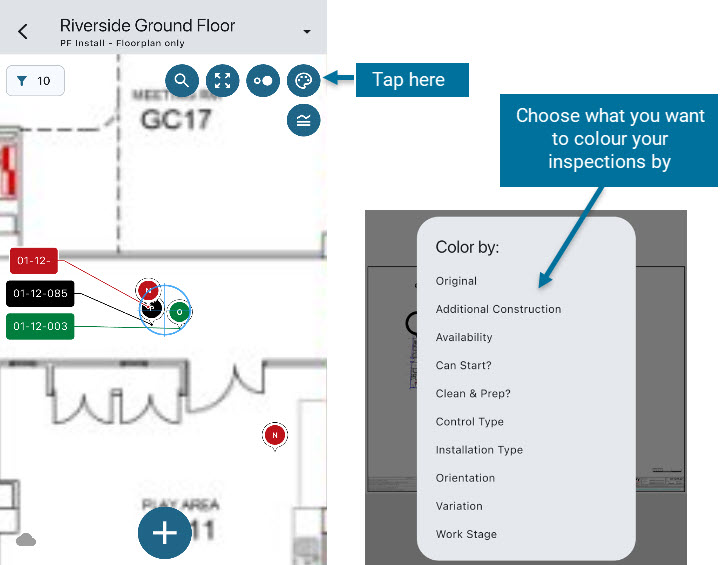

Easily identify different information about the inspections by colouring them by a particular field.

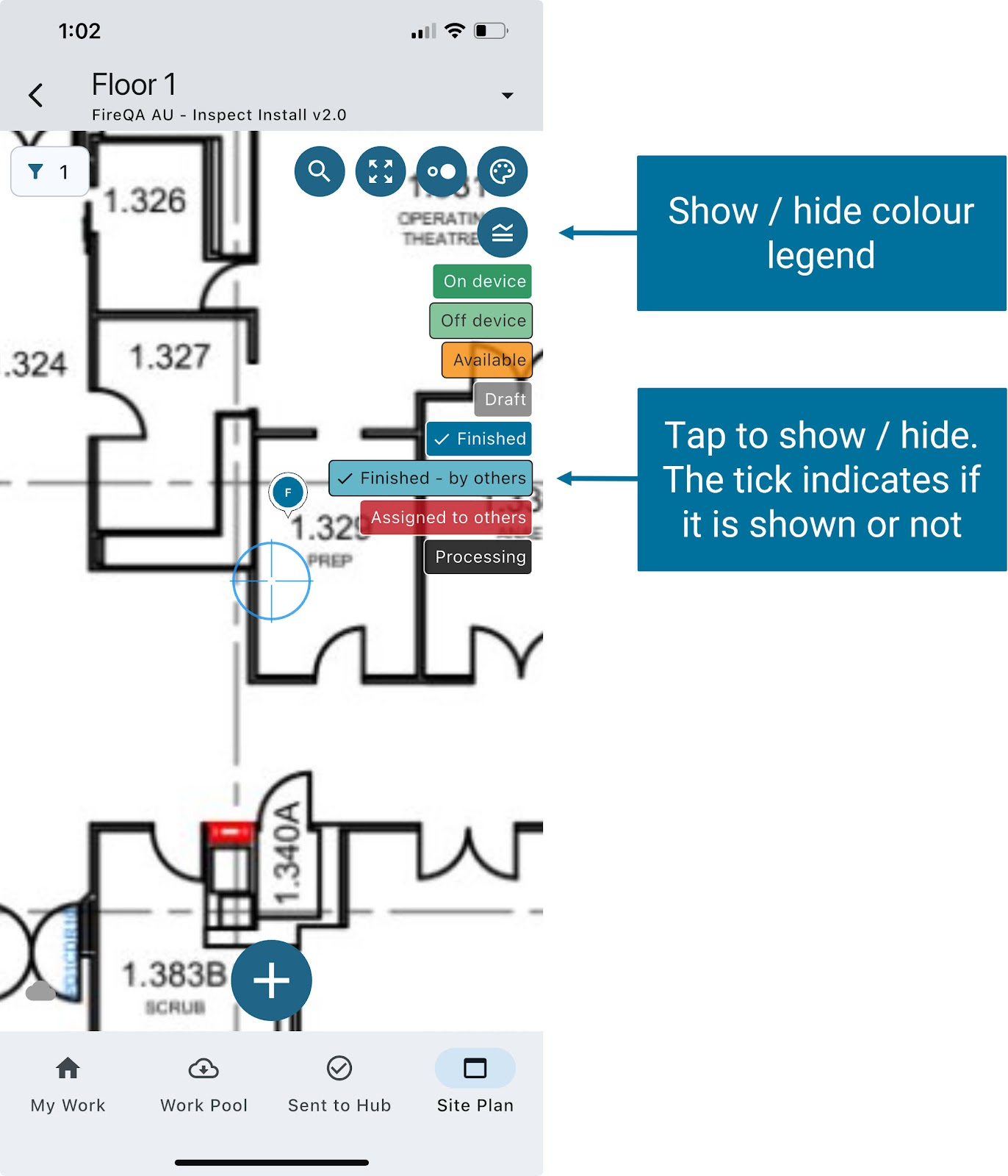

Once you have chosen how to colour your inspections, you can use the legend (colour key) to choose whether items are shown (ticked) or hidden (unticked). The legend does not have to stay on the screen.
iOS
Filters
Add filters to your site plan so you only see the inspection types and state you want to see.
Colour by Field

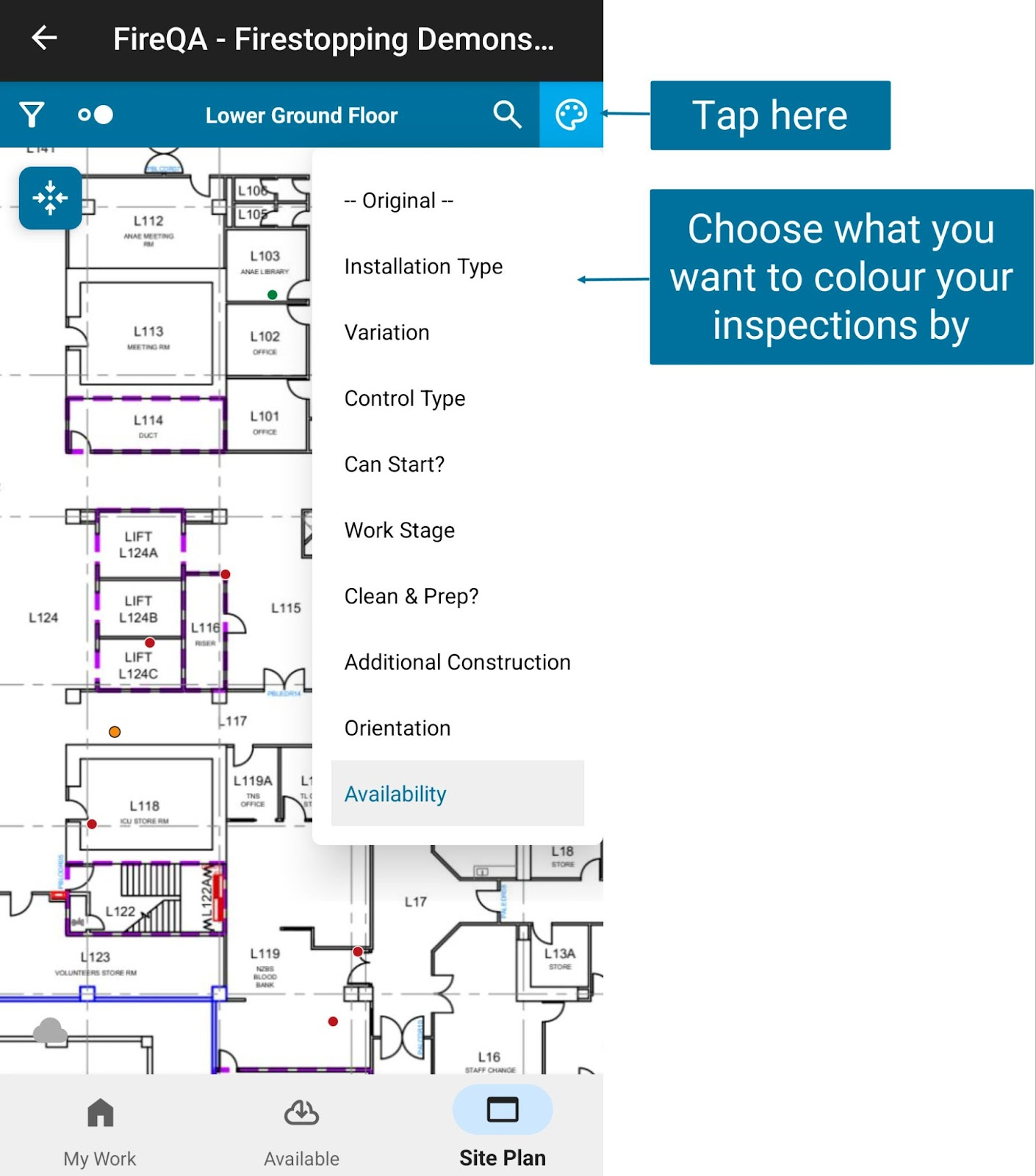

Easily identify different information about the inspections by colouring them by a particular field.

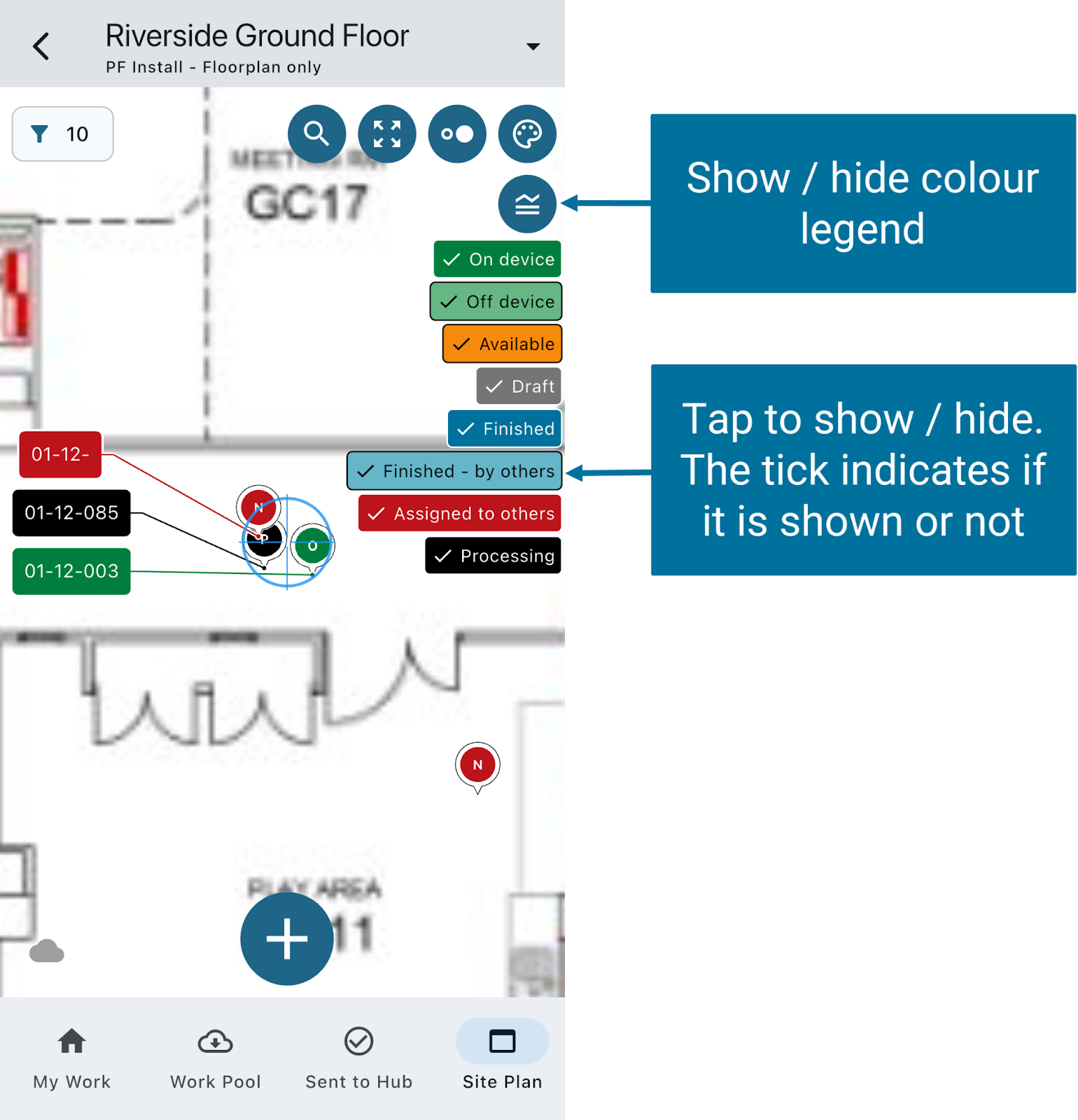

Once you have chosen how to colour your inspections, you can use the legend (colour key) to choose whether those items are shown (ticked) or hidden (unticked). The colour key (the legend) does not have to stay on the screen.
Fetch Finished Work from the Hub
Within the site plan view you can also fetch finished work from the hub. Please read this user guide for more information.
